Figures for Paper "Application of noise guidance to the assessment of industrial noise with character on residential dwellings in the UK" by Daniel Baker, MAS Environmental Ltd

Please click on the graph to hear the audio (requires Adobe Flash)

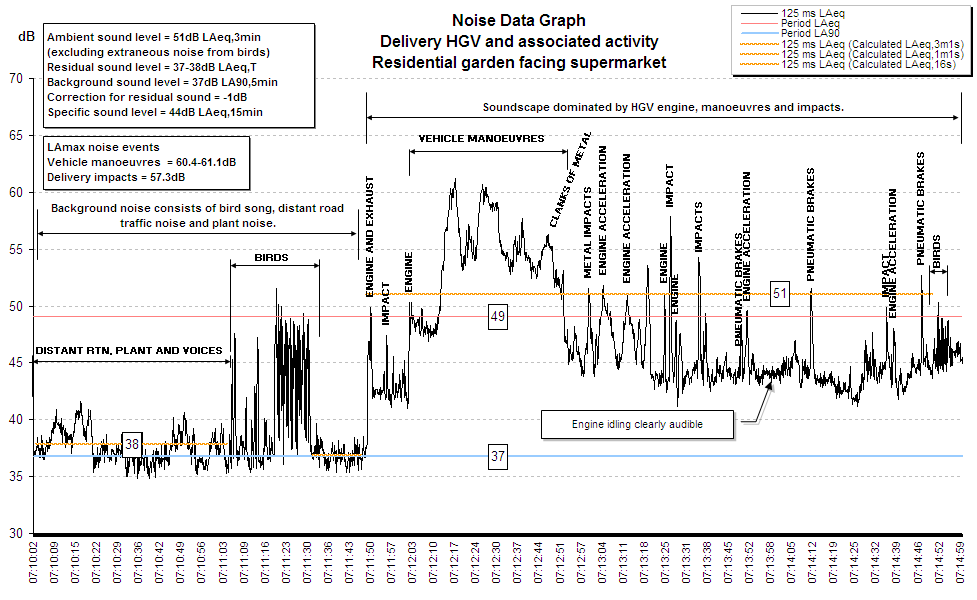

Figure 2: Measured noise level from supermarket delivery event

Figure 2 Problems using Adobe Flash? Click here to access the audio file directly

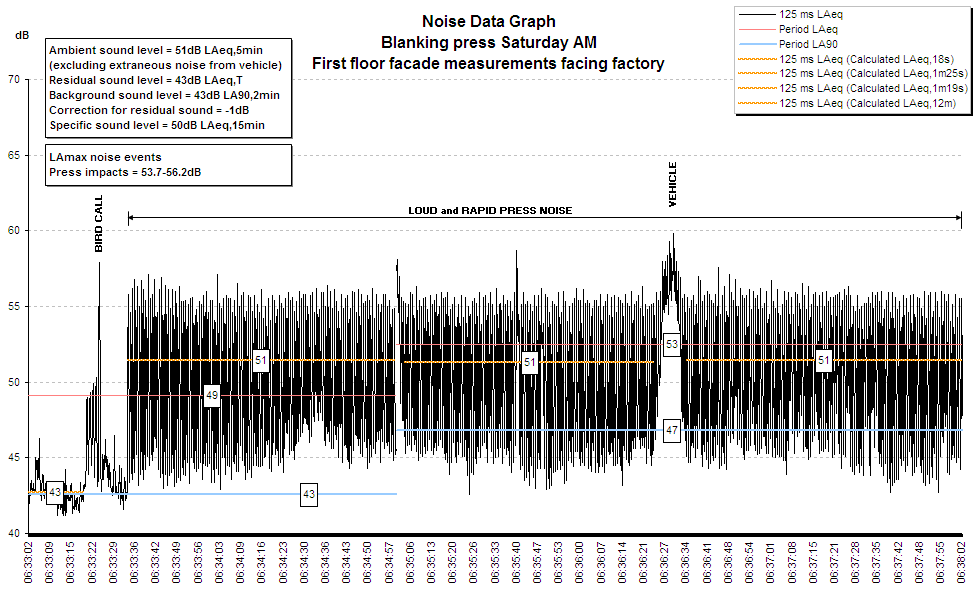

Figure 3: Measured noise level from blanking press

Figure 3 Problems using Adobe Flash? Click here to access the audio file directly

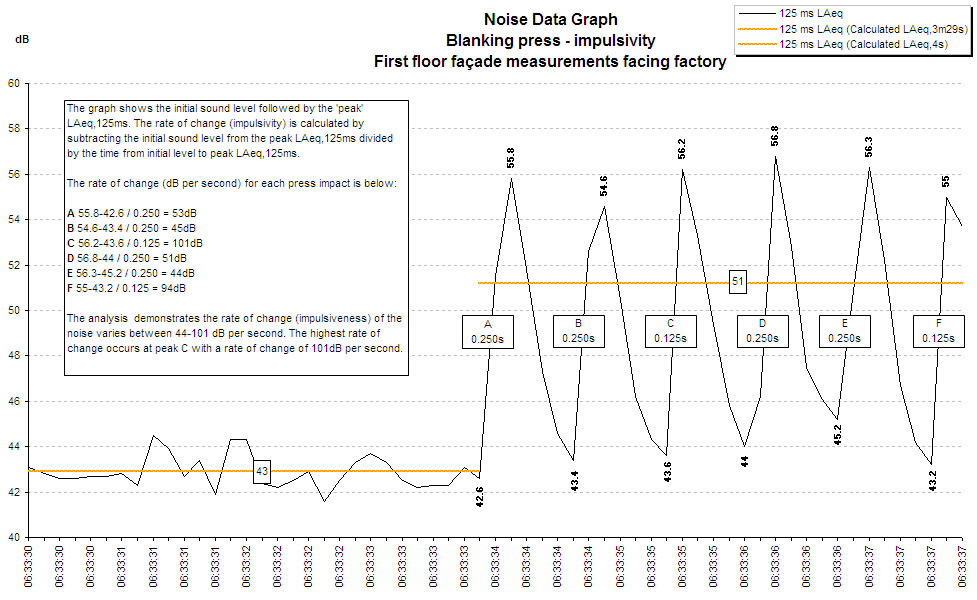

Figure 4: Analysis of impulsivity of blanking press

Figure 4 Problems using Adobe Flash? Click here to access the audio file directly

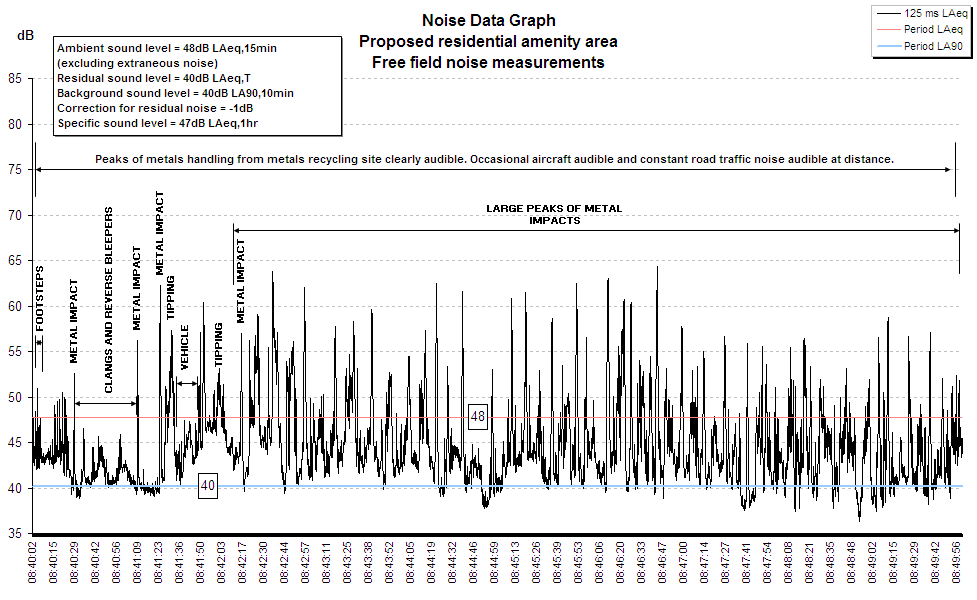

Figure 5: Measured noise level from metals recycling

Figure 6 Problems using Adobe Flash? Click here to access the audio file directly
